Material: Stainless steel
Process: Stamping
Finish: Cleaning

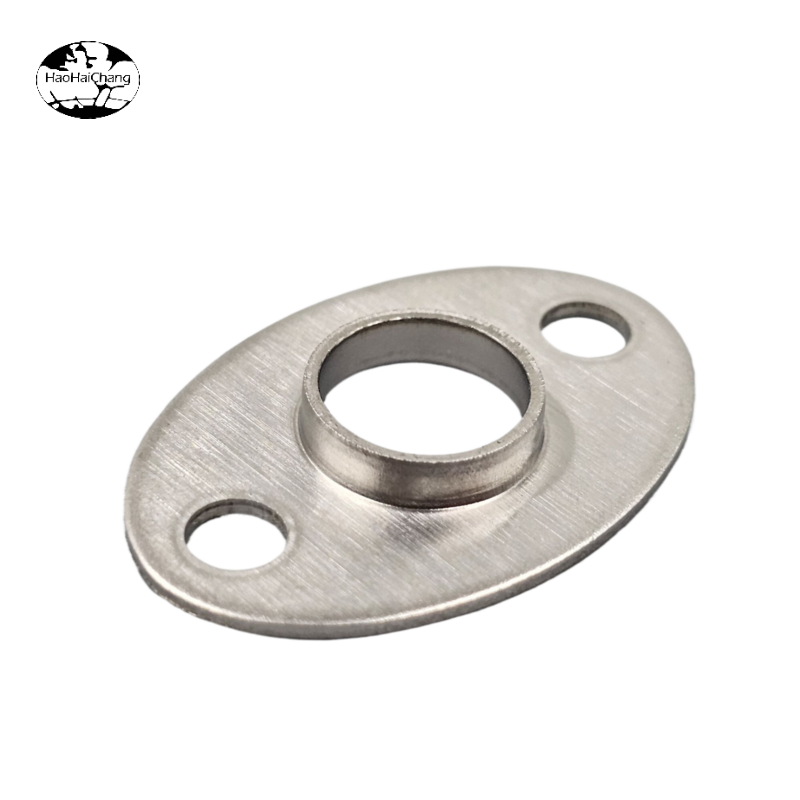

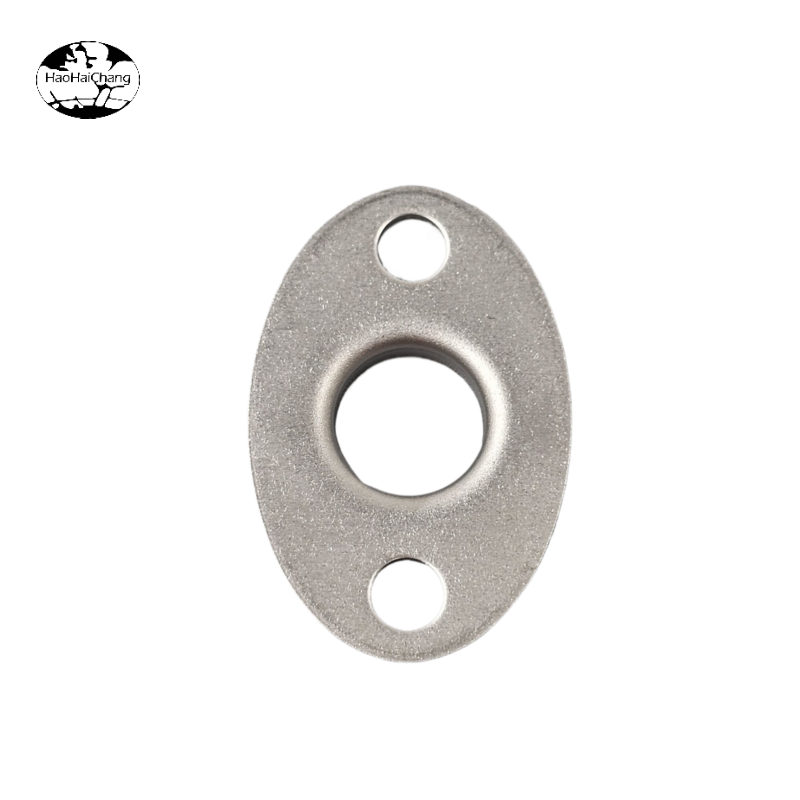

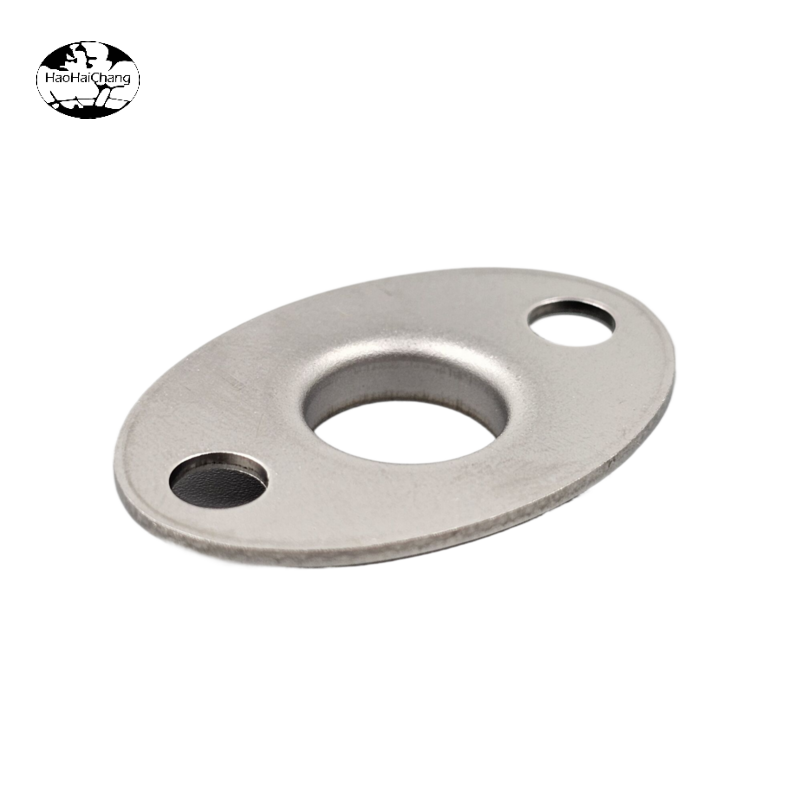

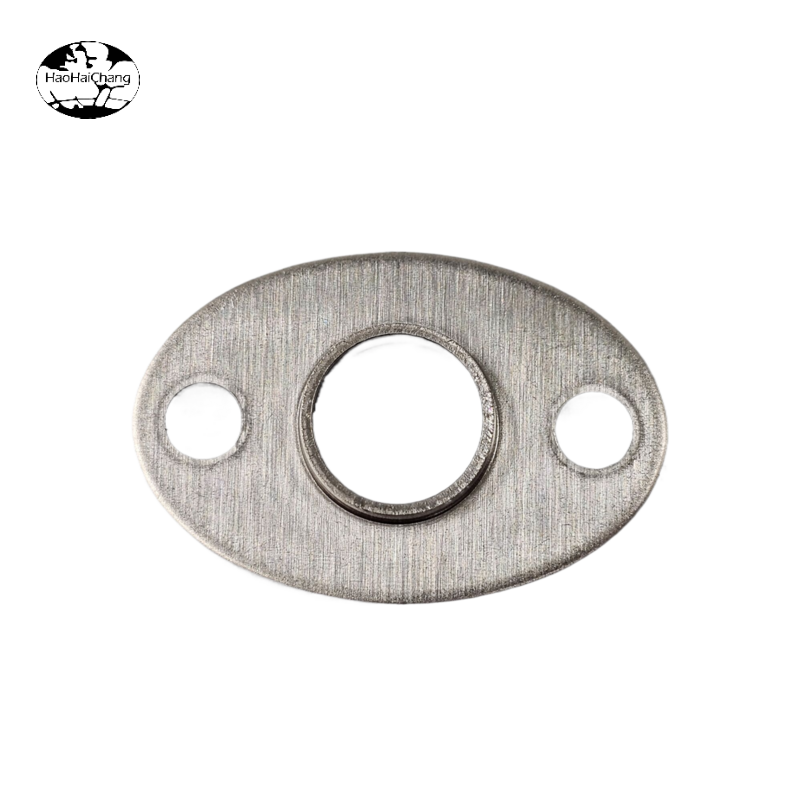

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-1238 oval pipe flanges demonstrate our expertise in SUS304 stainless steel fabrication and complex multi-feature machining. Each 36×24×1.2mm flange features precisely positioned bolt holes, accurately formed raised collars, and consistent brushed surface finishing, showcasing our commitment to dimensional accuracy and advanced metalworking techniques in piping applications.
Product Name | HHC-1238 Oval Pipe Flange with Bolt Holes |
Material Options | SUS304, SUS316, SUS430, SUS301, or custom stainless steel grades |
Diameter Range | 15mm-100mm (pipe opening diameter, custom sizes available) |
Length Range | 20mm-120mm (overall oval length) |
Thickness | 0.8mm-4.0mm |
Tolerance | ±0.01 mm |
Hardness | HV180-HV350 (depending on material grade and heat treatment) |
Color: | Natural stainless steel, brushed finish, passivated silver |
Manufacturing Process | Progressive stamping, deep drawing, CNC machining, hole punching |
Machining Capabilities | Oval forming, raised collar forming, precision hole punching, edge finishing, surface brushing, dimensional inspection |
Applications | Pipe connections, plumbing systems, HVAC applications, industrial piping, marine hardware, automotive exhaust systems |
Certifications | IATF16949:2016 ISO9001:2015 ISO13485:2016 ISO14001:2015 AS9131D |
Packaging Details | Packaged in plastic bags then placed in carton boxes or as per clients' specific requirements |
Custom Production Cycles and Export Services
Shipping Port | Shenzhen or Hong Kong |
Production Lead Time | |
Quantity (pieces) 1 - 10,000 | 10 days |
Quantity (pieces) > 10,000 | To be negotiated |
Customization Services | |
Customized logo | Min. order 100(pieces) |
Customized packaging | Min. order 100(pieces) |
Graphic customization | Min. order 100(pieces) |
